Alcohol Wipes Making Machine

Alcohol wipes making machine is widely used for manufacturing 4 side sealing and packing for different alcohol wipes,such as BZK antiseptic swab,alcohol swab,prep pad etc

Features:
1. Closely sealed, no leakage, no blistering; the bag is flat and beautiful.
2. High output: 240-280 packs/min
3. Inner non-woven fabric specifications are generally 60×60mm: after folding is 30×30mm, 4 layers (nonwoven fabric is folded twice)

Process flow:
Packaging material load on the machine → Non-woven fabrics folded in the vertical → Cut → Non-woven fabrics folded in half horizontal → Add liquid → Folded nonwoven output → Bag → Packaging → Sealing → Products.

Technical parameters:
Name: Alcohol wipes making machine
Model:PPD-AW280
Alcohol swab opening size: Length 60mm × Width 60mm
Alcohol swab fold size: Length 30mm × Width 30mm
Folding method: folded twice, 4 layers
Bag size: Length 50mm × Width 50mm
Processing capacity: 240-280 bags/min
Alcohol pad material specification: width 60mm
Raw material core diameter: 3inch
Total power: 220v, 50hz, 2.6 kw

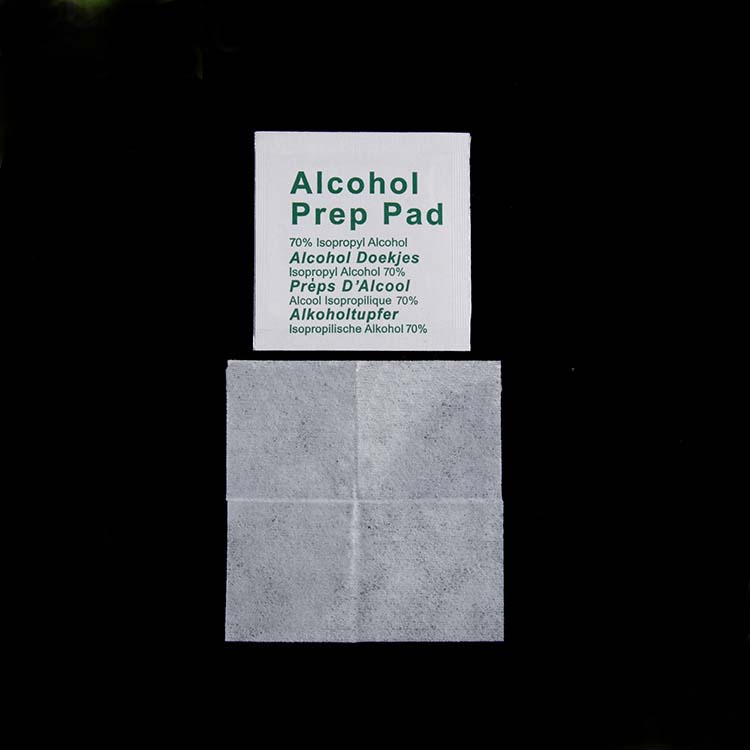

Sample：
