Automatic Toothbrush Blister Packing Machine

Automatic Toothbrush Blister Packing Machine

It adopts human-machine interface, PLC intelligent control program, solid-state encoder, support touch screen operation, automatic counting, adjustable stroke speed, accurate and convenient, friction wheel reducer mechanical stepless speed adjustment, stable machine operation, can be applied to different sizes of toothbrush paper-plastic packaging products, convenient operation, durable, clean and hygienic, and equipped with safety emergency stop device can ensure the emergency measures in production, increase the operating safety factor, is currently more convenient intelligent packaging equipment.

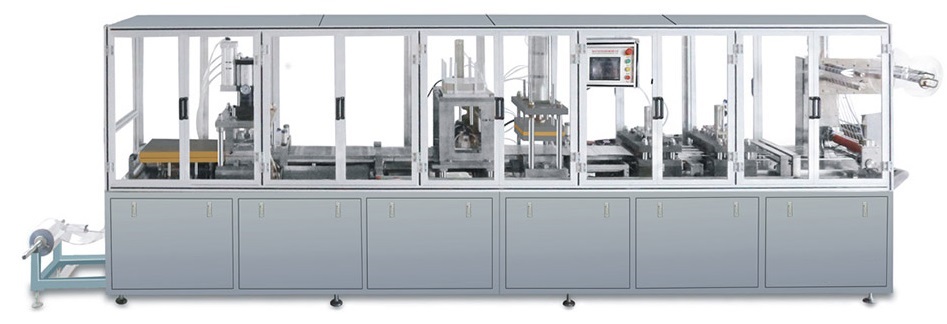

AC-320B High Speed Fully Enclosed Toothbrush Blister Packaging Machine

Scope of application.

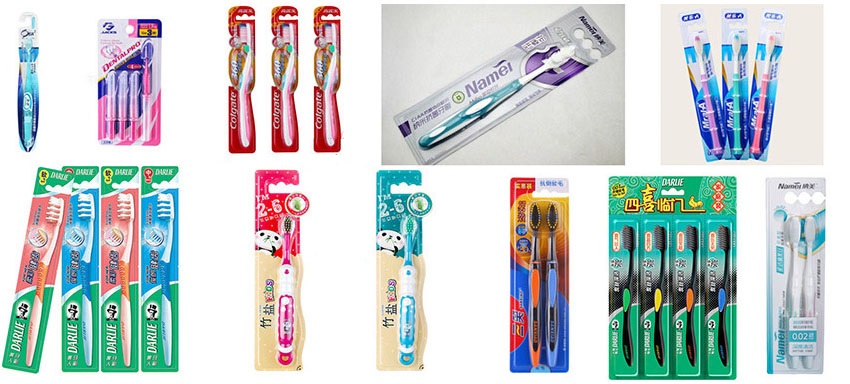

This machine is professionally applied to the toothbrush industry, professionally customized for toothbrush packaging. All kinds of toothbrushes, single, double, multiple toothbrush packs can be produced.

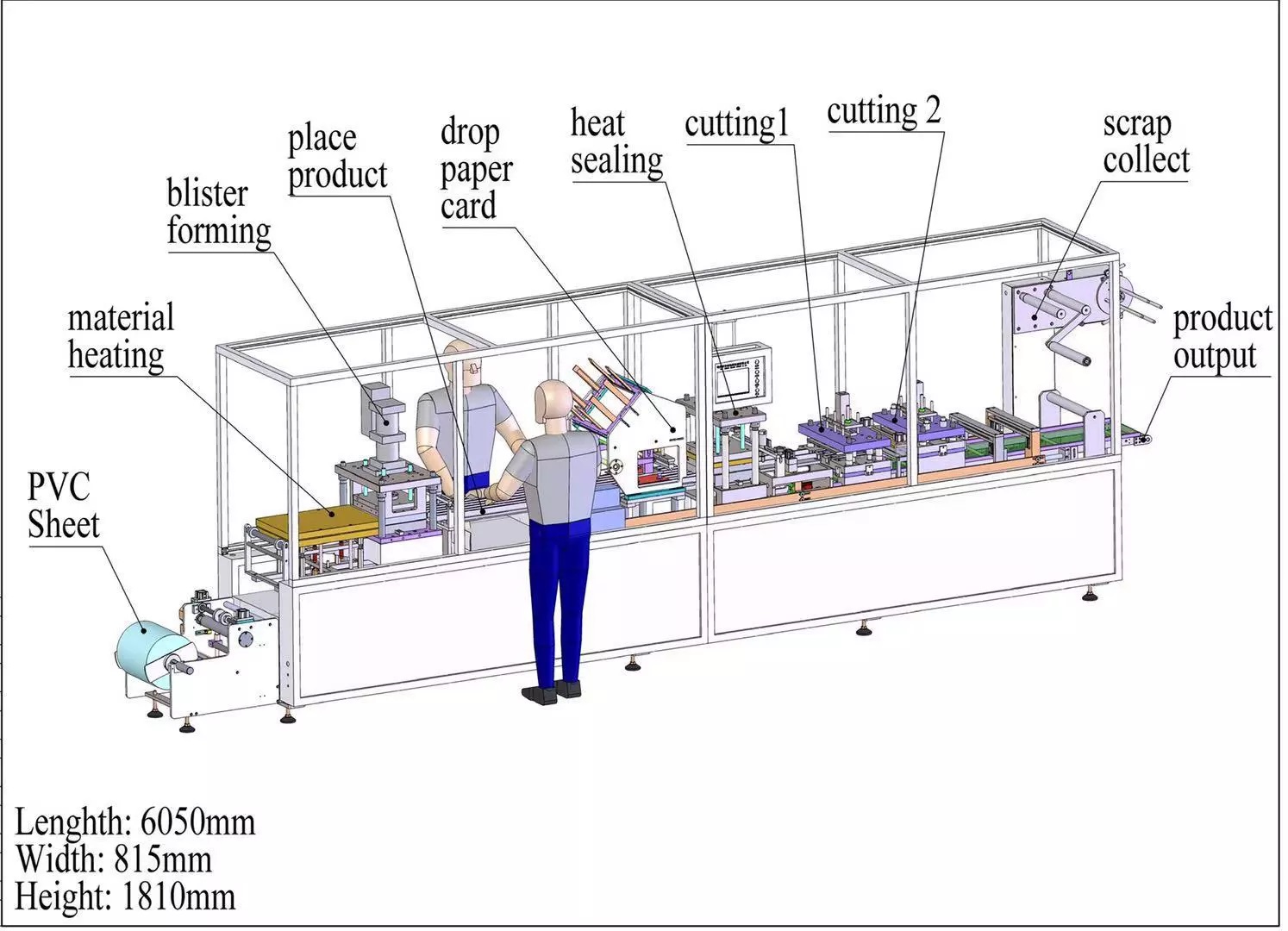

Equipment process flow:

Product Description:
It adopts human-machine interface, PLC intelligent control program, solid-state encoder, support touch screen operation, automatic counting, adjustable stroke speed, accurate and convenient, friction wheel reducer mechanical stepless speed adjustment, stable machine operation, can be applied to different sizes of toothbrush paper-plastic packaging products, convenient operation, durable, clean and hygienic, and equipped with safety emergency stop device can ensure the emergency measures in production, increase the operating safety factor, is currently more convenient intelligent packaging equipment.

1: Mechanical drive, servo motor traction, reasonable structure and simple operation.
2: Stainless steel shell, beautiful appearance, easy to clean, improve the grade of the product.
3: PLC computer control system, frequency control, reduce noise and improve the stability of machine operation.
4: Photoelectric control, automatic detection, improved performance such as operational safety.
5: Integral card feeder to reduce worker labor.
6: Separate design for easy access to the elevator.
7: Design of moulds and automatic feeding methods according to the shape of the package.

Product Specifications

Packing material: pvc cardboard (0.15-0.5)×300mm, paperboard 200g-700g, 200×300mm
Compressed air Pressure 0.5-0.8mpa Air consumption ≥0.5/min
Power consumption 380v 50Hz 10kw
Mould cooling water Tap or circulating water energy consumption 50 L/h
Dimensions (L×W×H)5100×1300×1500mm
Weight 2400kg
Production capacity 15-25 strokes/min
Stroke range 50-160mm
Maximum board area 300X200mm
Maximum forming area and depth 400×160×40mm

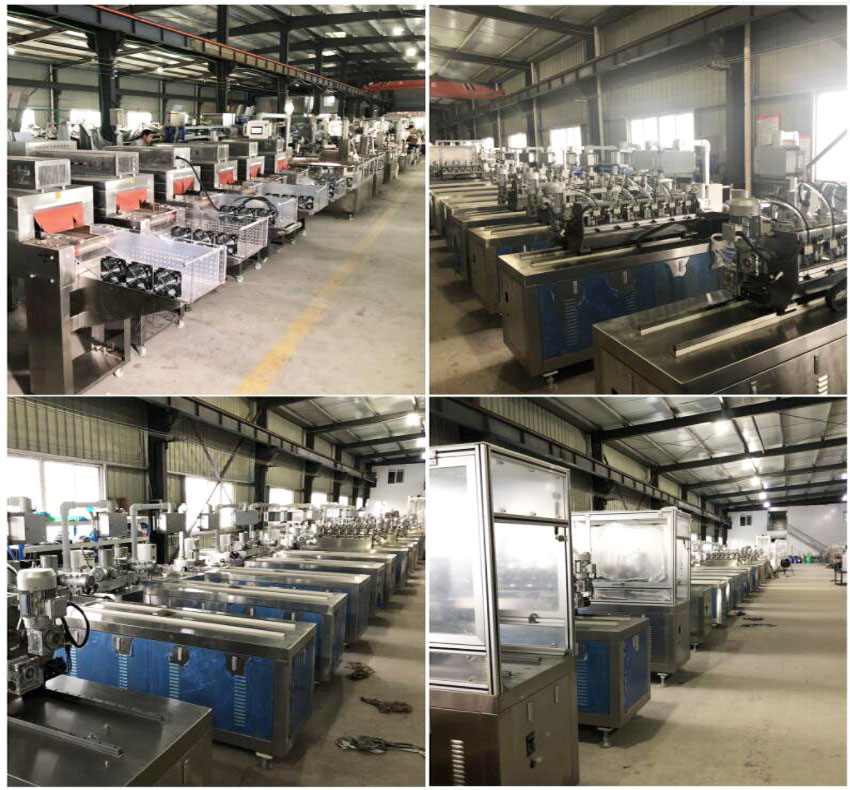

Production Workshop Live View
