Kd-260 Hardware Tape Hinge Faucet Automatic Packing Machine with Film Paper Packaging

Kd-260 Hardware Tape Hinge Faucet Automatic Packing Machine with Film Paper Packaging

KD-260 Hardware Tape Hinge Faucet Automatic Packing Machine with Film Paper Packaging1. Product image:2. Scope of application:Apply more material blocks(such as betel,olives,candied fruit,gong date),multiple packet soup,solid dispersing materials,small electronic components of irregular o…

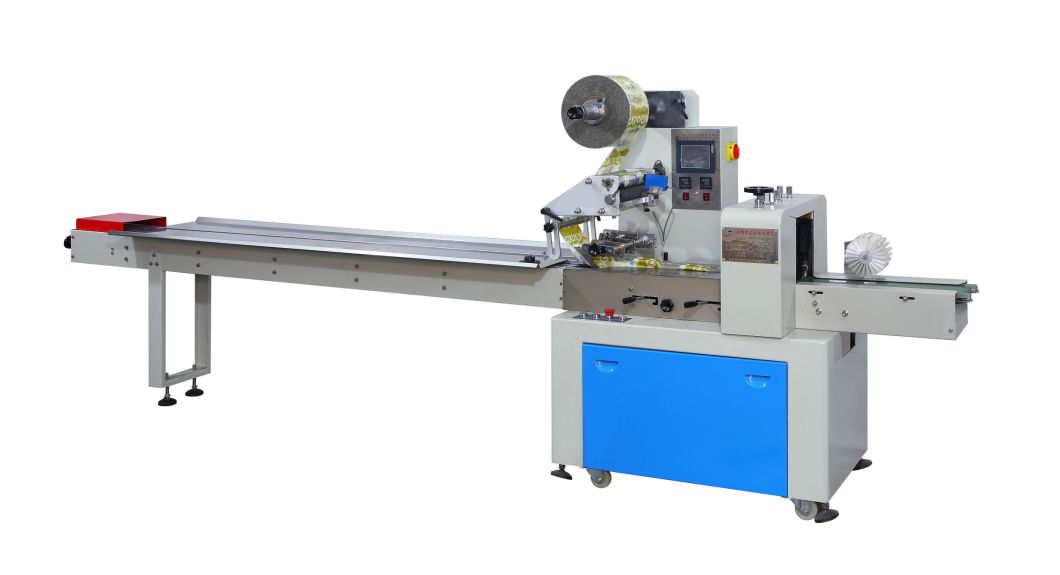

KD-260 Hardware Tape Hinge Faucet Automatic Packing Machine with Film Paper Packaging1. Product image:

Kd-260 Hardware Tape Hinge Faucet Automatic Packing Machine with Film Paper Packaging

Kd-260 Hardware Tape Hinge Faucet Automatic Packing Machine with Film Paper Packaging
Kd-260 Hardware Tape Hinge Faucet Automatic Packing Machine with Film Paper Packaging
Kd-260 Hardware Tape Hinge Faucet Automatic Packing Machine with Film Paper Packaging
2. Scope of application:

Apply more material blocks(such as betel,olives,candied fruit,gong date),multiple packet soup,solid dispersing materials,small electronic components of irregular objects.
Kd-260 Hardware Tape Hinge Faucet Automatic Packing Machine with Film Paper Packaging

Kd-260 Hardware Tape Hinge Faucet Automatic Packing Machine with Film Paper Packaging

3. Features:

Compact structure, stable function and simple operation.
Double frequency converter controller,length of package will cut immediately once setting, adjustment needless, saving time and film.

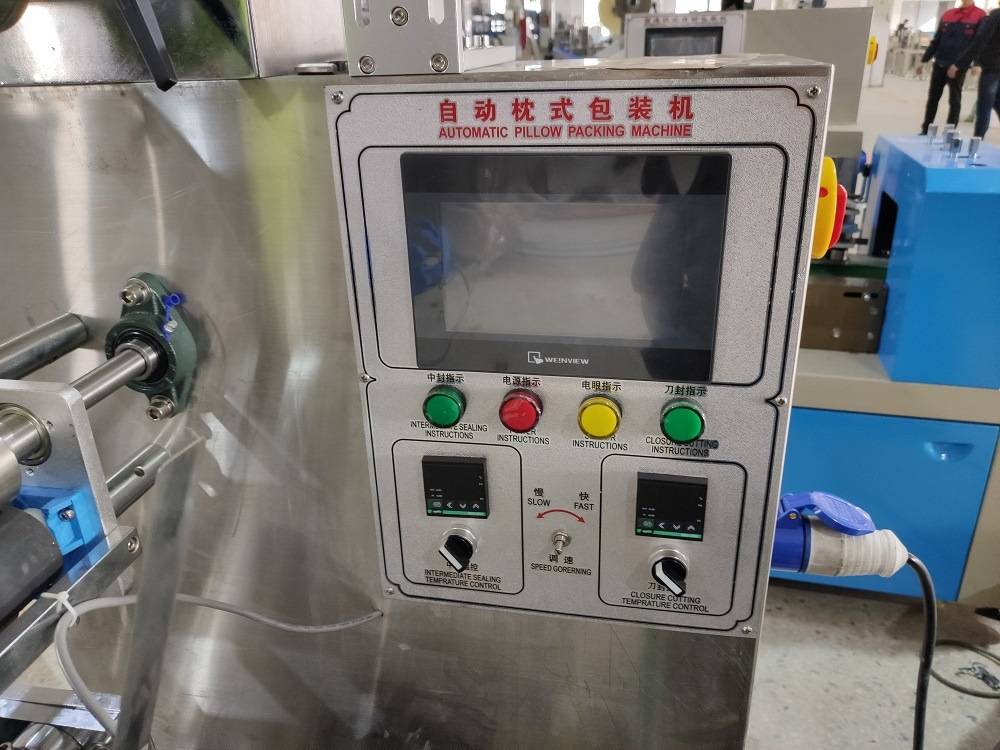

It adopts imported electric appliance, touch manmachine interface, convenient parameter setting.
Self-cheching function, trouble can be read easily. High sensor photoelectric color chart tracking, make the cutting position more correctly.
Dependant temperature PID controlling suitable for various materials of packagingmenbrane.Position stop function, no adhesive and no waste of membrane.
Clean rotation system, more reliableoperation and more convenient maintenance.
All the controlling operates by the software,convenience for function ad-justment and technical up grading.

4. Main Technical Date:

Model KD-350 KD-350A KD-350B
Max film width 340mm 350mm 350mm
Max packaging capacity
(according to its material to confirm)
40-200 times/min 40-220 bags/min 50-150 times/min
Suitable film thickness 0.03-0.06mm 0.03-0.06mm 0.03-0.06mm
Length of bags 65-330mm 60-220mm 65-330mm
Packaging width 30-160mm 25-100mm 30-150mm
Packaging height ≤55mm ≤55mm ≤50mm
Total power 3.2Kw 220V 2.4Kw 220V 3.2Kw 220V
Overall dimensions(L x W x H) 4100 x 1050x1560mm 4000 x 920x1500mm 4100 x 1050x1560mm
Weight 600KG 600KG 680KG
Type Horizental Reverse Lower feeding
Application Suitable for biscuits, packaging of all kinds of objects with regular solid state, such as bread, speed wheaten food, moon cake, candy, medicines, daily necessities, hardware, paper carton or the tray, etc. Apply for material blocks such as betel, olives, candied fruit, gong date, multiple packet soup, solid dispersing materials, small electronic components of irregular objects. Suitable for soft strip packaging, such as towel, paper towel, dried noodles, omelet, banger, sleeve-fish, ice-lolly, candy.
5. Performance And Characteristics

1.Compact structure, stable performance, easy maintenance. The double frequency conversion control, bag length is set is cut, don’t need to adjust empty, one pace reachs the designated position, time-saving membrane uses the Sifang imported frequency converter
2.Touch human-machine interface, convenient and quick parameter setting fault self-diagnosis function, fault shows at a glance.Look the Gao Gan degree of photoelectric tracking,
3.Temperature independent PID control, better suited to a variety of material coated.Positioning stop function, non-stick knives, at no cost

4. The rotation system is concise, more reliable, more convenient maintenance.
Adopt import stepper motor. The noise is small, the tracking accuracy!Optional (servo motor)
5. All control by the software implementation, convenient function adjustment and technology upgrade, never backward.6. The rotation system is concise, more reliable, more convenient maintenance.
Adopt import stepper motor. The noise is small, the tracking accuracy!Optional (servo motor)
6. All control by the software implementation, convenient function adjustment and technology upgrade, never backward.

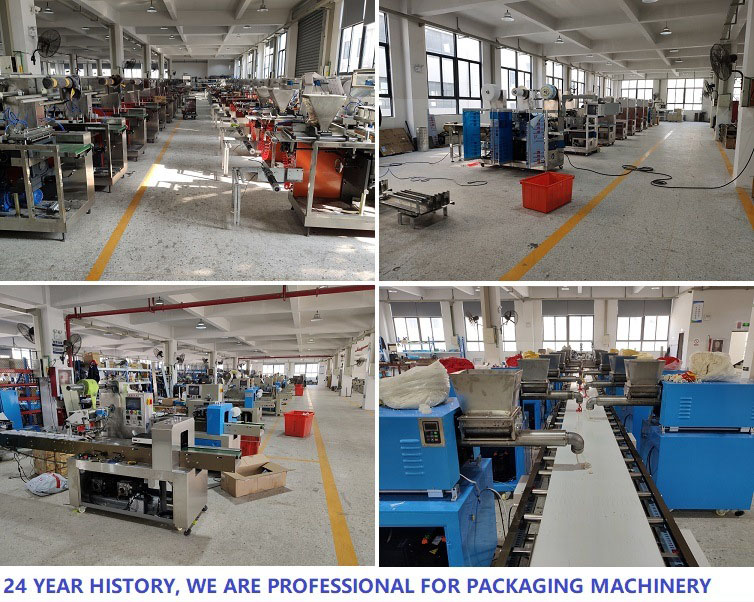

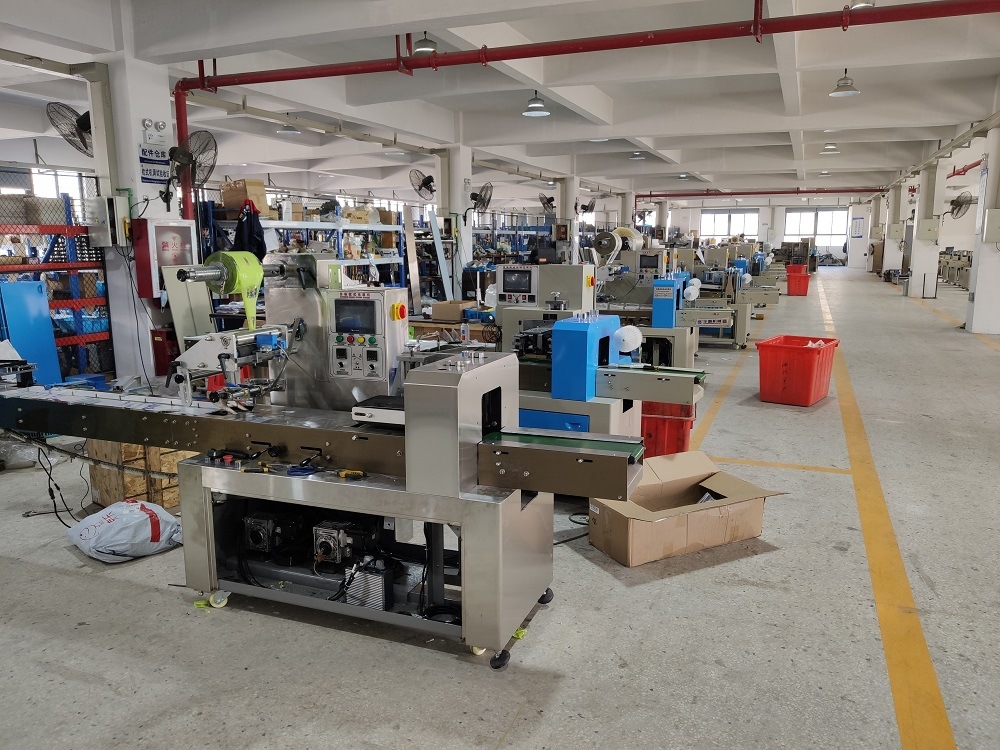

6. Factory tour:
Kd-260 Hardware Tape Hinge Faucet Automatic Packing Machine with Film Paper Packaging

7. RFQ:
