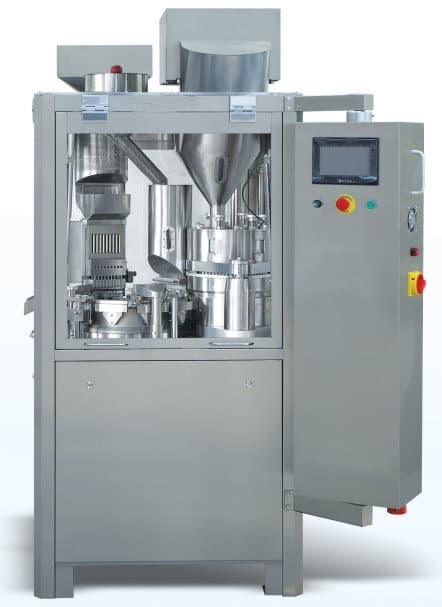

Njp Fully Automatic Capsule Filling Machine

Njp Fully Automatic Capsule Filling Machine

Njp Fully Automatic Capsule Filling MachineProduct advantages:1. Independently develop and improve the internal design of the die turntable, and use original Japanese linear bearings, which have higher accuracy and longer service life than counterpart equipment.2. The design of the lower cam…

Njp Fully Automatic Capsule Filling Machine

Njp Fully Automatic Capsule Filling Machine

Product advantages:
1. Independently develop and improve the internal design of the die turntable, and use original Japanese linear bearings, which have higher accuracy and longer service life than counterpart equipment.

2. The design of the lower cam, compared with its counterparts, we have increased the pressure atomizing oil pump to maintain the lubrication in the cam groove, which greatly reduces wear and prolongs the service life of parts.

3. The upper and lower modules are designed for one-way movement, and the imported double-lip polyurethane sealing ring has better sealing performance.

4. The control panel is eye-catching and intuitive, and adopts stepless variable frequency speed regulation.

5. The three-dimensional adjustment mechanism based on the lower plane of the measuring plate is used to make the gap more uniform and the loading difference more accurate.

6. Equipped with safety protection devices for people and machines, with automatic shutdown device for lack of materials, to achieve more stable machine operation, safety and reliability.

7. The combination of air blowing and gas suction of the module has been added to ensure that the mold holes are clean and free of dust and improve the probability of operation.

8. Independent design of 2 sprockets drives 2 indexing boxes to separate labor. (Peer is generally a sprocket to drive 2 indexing boxes.) Reduces resistance, shares operating pressure, increases operating intensity, and the station’s fault is basically zero.

Machine specification and parameter:

Model NJP-200 NJP-400 NJP-600 NJP-800 NJP-1000
Output (PCS/H) 12000 24000 36000 48000 60000
Capsule sizes 00#~4# & safety capsule A~E 00#~4# & safety capsule A~E 00#~5# & safety capsule A~E 00#~5# & safety capsule A~E 00#~5# & safety capsule A~E
Total power 3.32kw 3.32kw 4.9kw 4.9kw 5.75kw
Net weight 700kg 700kg 800kg 800kg 900kg
Dimension (mm) 720×680×1700 720×680×1700 930×790×1930 930×790×1930 1020×860×1970

Machine details:
Njp Fully Automatic Capsule Filling Machine

Factory tour:
Njp Fully Automatic Capsule Filling Machine

Expot Packaging:
Njp Fully Automatic Capsule Filling Machine

Njp Fully Automatic Capsule Filling Machine

RFQ:
1. Quality warranty
One year warranty, free replacement due to quality problems, non-artificial reasons.

2. After-sales service
If need seller to provide service at customer’s plant. buyer need to bear visa charge, air ticket for round trips, accommodition, and daily salary.

3. Lead time
Basically 25-30 days

4. Payment terms
30% advance, the balance need to be arranged before the delivery.
The customer need to check the machine before delivery.
