Dpp-80 Manufacturing Pharmaceutical Packaging Machine, Blister Packing Machine1. Product Image2. Features:1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided…
SEND EMAIL: jackie@fillingpackingmachines.com
3. Technical specifications:
Model | DPP-80 |
Punch frequency | 10-33times/min |
Production capacity | 1980plates/hour |
Max. Forming area & Depth | 105×70(standard depth <=15mm), Max. Depth 25mm( As adjusted |
Standard Stroke range | 30-80mm(can be designed as per user’s required) |
Standard plate size | 80x57mm (can be designed as per user’s required) |
Air pressure | 0.4-0.6Mpa |
Compressed air required | Air compressor≥0.3m3/min |
Total power supply | 220V 50Hz 2.4Kw |
Main motor | 0.75Kw |
PVC hard Film | 0.15-0.5*110 (mm) |
PTP Aluminum film | 0.02-0.035*110 (mm) |
Cold stamped aluminum | 0.14-0.16 110(mm) |
Dialysis Paper | 50-100g*110(mm) |
Mould cooling | Tap water or Recycling water |
Overall Dimension | 1840x590x1100 (mm)(LxWxH) |
Weight | Net 425kg Gross weight: 475kg |
Noise index | <75dBA |
4. Machine details:
1. PLC + Touch
2. Indentation device
3. Ornaic glass cover
4. cursor positioning
5. Machinery forming
6. Recovery device

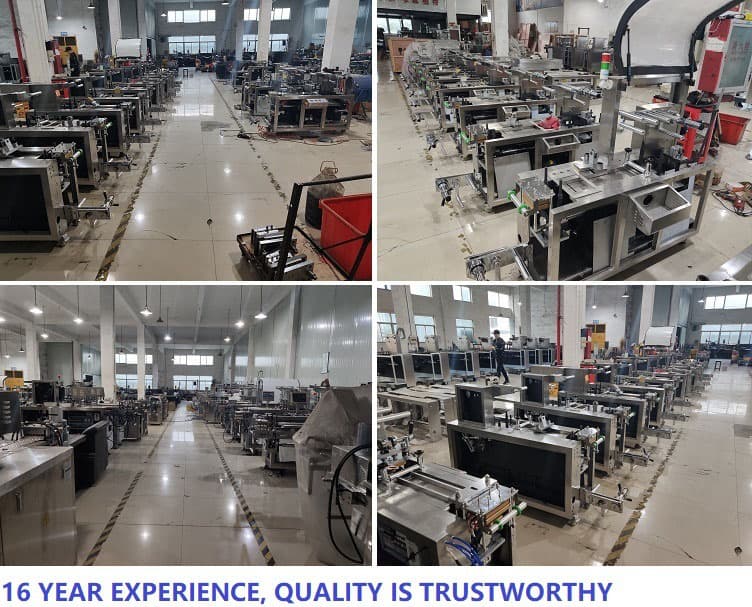

5. Factory tour:
6. Packaging:
8. FAQ
1. How do we know the model is suitable for our target capacity?
A: Pls tell us how many blisters do you want to pack in one hour, what are you going to pack, what is the size of blister sheet, then we will design and choose the most cost-effective blister packaging machine for you.
2. Can I pack two kinds or more of different sizes of blisters by one machine?
A: Yes, pls tell us your requests of the size you are going to pack, we will design different mould for you to change.
3. What kind of products can you pack with this machine?
A: we can pack different products, like capsules, tablets, vials, ampoules, candies, electronic products, liquids, and many other products.
